Fiat

Tipo (1988-1995)

Powerflex Front Lower Wishbone Rear Bush

PFF1-802

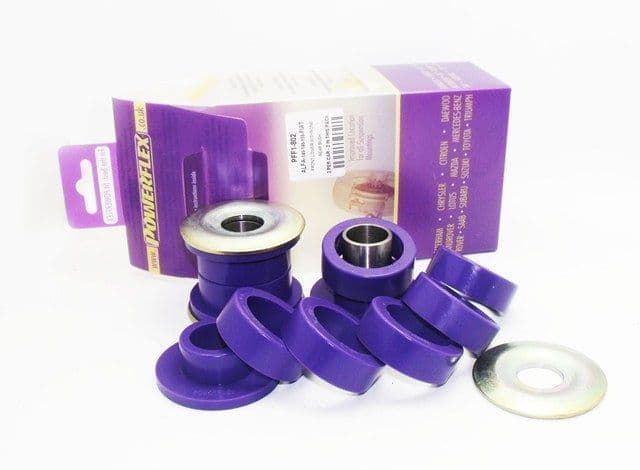

These bushes are designed to fit genuine control arms. If non genuine arms are fitted and you find the stainless steel sleeve not to fit onto the wishbone, please contact us with dimensions of the wishbone pin as you will require modified sleeves. PFF1-802 kit comes with different sized rings. Please select the correct ring depending on the rear bracket fitted. Use the smaller ring (802b) with the aluminium bracket and 802c with the pressed steel bracket. It is only possible to fit these bushes after removing the arms from the car. For arms fitted with the pressed steel rear bracket, the rubber bush may need to be burned out using a blowtorch, firstly and then the bracket cleaned thoroughly to ensure a good surface. WE RECOMMEND THE USE OF LOCTITE 648 OR 848 TO SECURE CENTRE SLEEVE TO ARM

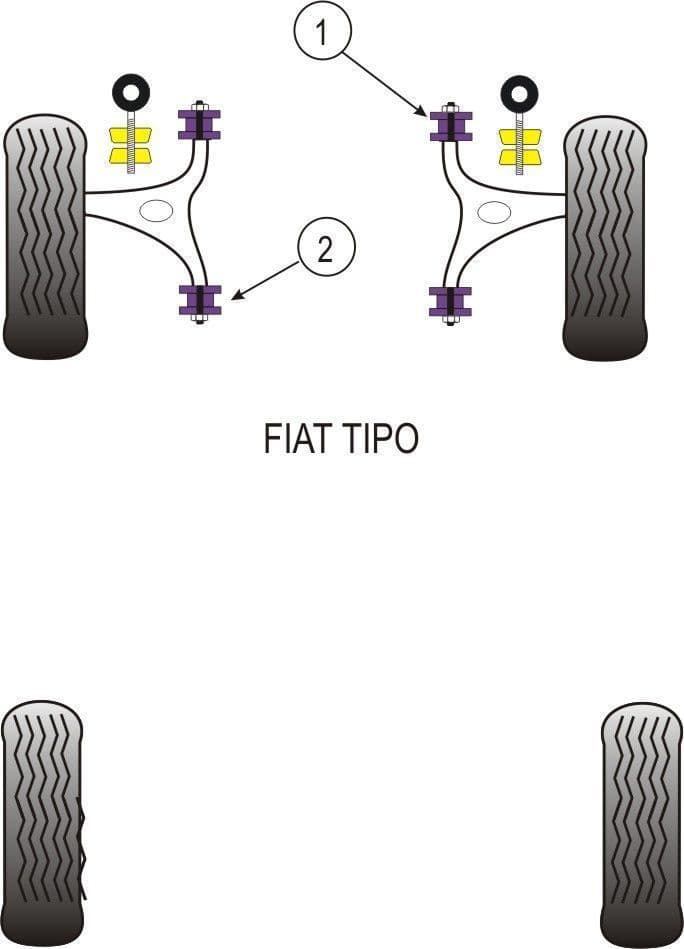

Diagram Position: 2

Number of Bushes Supplied: 2

Range: ROAD Series
